Triggers, Interaction, and Runtime API

Start dialogues from gameplay using proximity detection, input events, clicks, or code. This guide covers every component in the interaction and integration layers, the event system, input abstraction, actor resolution, and the full DialogueRunner API.

---

Table of Contents

• DialogueTrigger
• DialogueInteractable
• InteractionDetector
• InteractionPromptUI
• DialogueActor
• DialogueActorResolver
• Input System Support
• DialogueEvents
• Starting Dialogues from Code

---

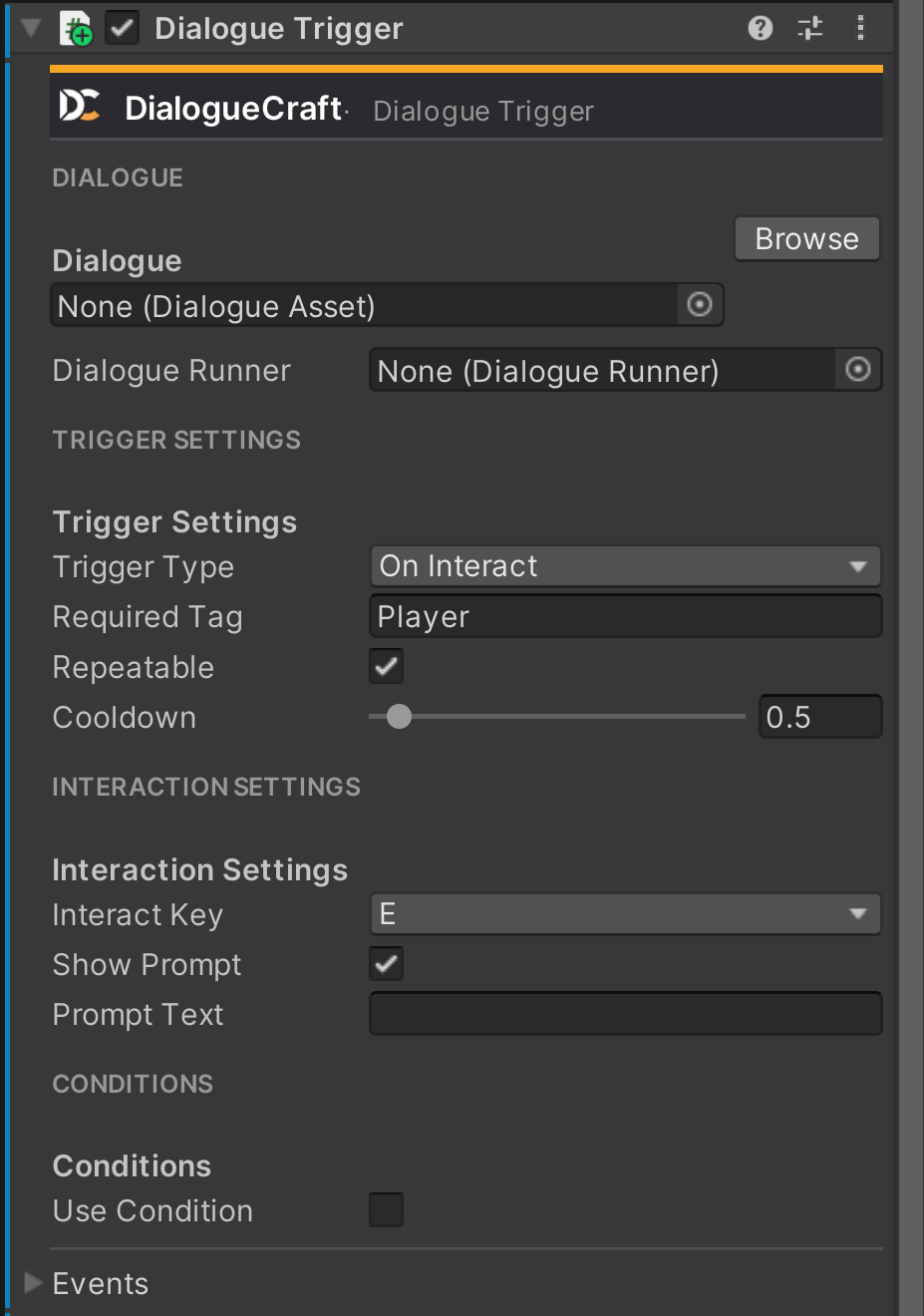

DialogueTrigger

Self-contained component that starts a dialogue based on configurable conditions. Works with both 2D and 3D colliders.

Add component: CraftWorks > DialogueCraft > Dialogue Trigger

Inspector Fields

Field	Type	Default	Description
dialogue	DialogueAsset	null	The dialogue to play when triggered.
dialogueRunner	DialogueRunner	null	Runner to use. Auto-finds one in the scene if not set.
triggerType	TriggerType	OnInteract	How the dialogue is activated (see enum below).
requiredTag	string	"Player"	Only objects with this tag can trigger. Leave empty to accept any object.
repeatable	bool	true	Allow multiple activations.
cooldown	float	0.5	Seconds between activations (range: 0--10).
interactKey	KeyCode	KeyCode.E	Key for OnInteract mode.
showPrompt	bool	true	Show an on-screen prompt when the player enters range (OnInteract mode only).
promptText	string	""	Custom prompt text. If empty, defaults to "Press {interactKey} to talk".
useCondition	bool	false	Gate the trigger behind a variable condition.
conditionVariable	string	""	Name of the global variable to check.
conditionOperator	ConditionOperator	Equals	Comparison operator.
conditionValue	string	""	Value to compare against.

TriggerType Enum

Value	Behavior
OnInteract	Player enters the trigger collider and presses interactKey.
OnTriggerEnter	Fires automatically when a valid object enters the trigger collider.
OnClick	Fires when the player clicks on the object (OnMouseDown).
OnStart	Fires automatically in Start() -- useful for cutscenes and opening sequences.

Events (UnityEvent)

Event	Fired When
OnTriggered	The dialogue was successfully started.
OnPlayerEnterRange	A valid object entered the trigger collider.
OnPlayerExitRange	A valid object exited the trigger collider.

Properties

Property	Type	Description
IsPlayerInRange	bool	Whether a valid object is currently inside the trigger collider.
CanTrigger	bool	Whether the trigger can fire right now. Returns false if: non-repeatable and already triggered, cooldown has not elapsed, no dialogue assigned, or condition is enabled and fails.

Methods

// Attempts to trigger the dialogue. Returns true if dialogue was started.
// Respects CanTrigger checks and will not fire if the DialogueRunner is already running.
public bool TryTrigger()

// Forces the dialogue to start, bypassing conditions, cooldown, and repeatability.
// Still requires a valid dialogue asset and DialogueRunner reference.
public void ForceTrigger()

// Resets internal state (clears hasTriggered flag and cooldown timer)
// so a non-repeatable trigger can fire again.
public void ResetTrigger()

3D and 2D Support

DialogueTrigger handles both physics systems. It implements:

• OnTriggerEnter(Collider) / OnTriggerExit(Collider) for 3D colliders
• OnTriggerEnter2D(Collider2D) / OnTriggerExit2D(Collider2D) for 2D colliders

Both paths share the same logic: tag validation via requiredTag, range tracking (playerInRange), prompt display, and trigger activation. The entering object's tag is checked with CompareTag.

Requirements:

• The trigger GameObject needs a Collider (3D) or Collider2D (2D) with Is Trigger enabled.
• The entering object must have a Rigidbody/Rigidbody2D for trigger callbacks to fire.
• The entering object must have the tag specified in requiredTag (default: "Player").

Condition Gating

When useCondition is enabled, the trigger evaluates a global variable from DialogueCraftSettings.Variables before firing. It constructs a Condition with the configured variable name, operator, and compare value. If the condition fails, CanTrigger returns false and TryTrigger() will not start the dialogue.

Prompt System

When triggerType is OnInteract and showPrompt is true, the trigger searches for an InteractionPromptUI in the scene (cached as a static reference). When the player enters range, it calls Show() with either promptText or the default "Press {interactKey} to talk". The prompt is hidden when the player exits range, when the dialogue starts, or when the trigger is disabled.

Editor Gizmos

When selected in the editor, the trigger draws a semi-transparent amber gizmo matching the attached collider shape: SphereCollider, BoxCollider, CircleCollider2D, or BoxCollider2D.

Setup Example

1. Add a DialogueTrigger component to an NPC GameObject.
2. Assign a DialogueAsset to the dialogue field.
3. Add a SphereCollider, enable Is Trigger, set the radius to your desired interaction range.
4. Set triggerType to OnInteract and interactKey to your preferred key.
5. Tag your player GameObject as "Player".
6. Ensure the player has a Rigidbody (can be kinematic).

---

DialogueInteractable

NPC-side component that marks an object as available for dialogue interaction. Designed to work with the player-side InteractionDetector, which handles detection, focus management, and input. While DialogueTrigger is self-contained, DialogueInteractable is a passive marker that waits for the detector to find it.

Add component: CraftWorks > DialogueCraft > Dialogue Interactable

Inspector Fields

Field	Type	Default	Description
dialogue	DialogueAsset	null	The dialogue to play when interacted with.
dialogueRunner	DialogueRunner	null	Runner to use. Auto-finds one in the scene if not set.
displayName	string	"Character"	Name shown in the interaction prompt.
promptFormat	string	"Press {key} to talk to {name}"	Prompt template. {name} is replaced with displayName, {key} with the interact key.
repeatable	bool	true	Allow multiple interactions.
priority	int	0	Selection priority when multiple interactables are in range. Higher values are preferred.
isEnabled	bool	true	Whether this interactable is currently active.

Events (UnityEvent)

Event	Fired When
OnInteracted	The interaction succeeded and dialogue started.
OnBecameFocused	This became the currently focused interactable (closest or highest priority).
OnLostFocus	This is no longer the focused interactable.

Properties

Property	Type	Description
CanInteract	bool	true if isEnabled is true, a dialogue is assigned, and (if not repeatable) has not yet been used.
IsFocused	bool	Whether this is the currently focused interactable.

Methods

// Attempts to interact. Returns true if dialogue was started.
// Checks CanInteract and verifies the runner is not already playing.
public bool Interact()

// Returns the formatted prompt text with {name} and {key} replaced.
public string GetPromptText(KeyCode interactKey)

// Sets the focus state. Fires OnBecameFocused or OnLostFocus when the state changes.
// Called by InteractionDetector; can also be called manually.
public void SetFocused(bool focused)

// Resets the interaction state so a non-repeatable interactable can be used again.
public void ResetInteraction()

DialogueTrigger vs. DialogueInteractable

Feature	DialogueTrigger	DialogueInteractable
Self-contained	Yes -- handles its own detection and input	No -- requires InteractionDetector on the player
Trigger modes	OnInteract, OnTriggerEnter, OnClick, OnStart	Interact only (via InteractionDetector)
Multi-NPC priority	No	Yes -- priority field + distance sorting
Focus events	No	Yes -- OnBecameFocused / OnLostFocus
Condition gating	Yes -- variable conditions built in	No (handle externally via isEnabled or custom code)
Prompt format	Static text or default	Template with {name} and {key} tokens
Cooldown	Yes (configurable)	No

Use DialogueTrigger for simple, self-contained setups. Use DialogueInteractable + InteractionDetector when you have multiple NPCs and need automatic focus management with priority-based selection.

---

InteractionDetector

Player-side component that scans for nearby DialogueInteractable objects using physics overlap queries, selects the best one based on priority and distance, and handles interaction input.

Add component: CraftWorks > DialogueCraft > Interaction > Interaction Detector

Inspector Fields

Field	Type	Default	Description
detectionRadius	float	3.0	Radius for detecting interactables (range: 0.5--10).
interactableLayer	LayerMask	Everything (-1)	Layer mask filtering which objects to scan.
updateInterval	float	0.1	How often detection runs, in seconds (range: 0.05--0.5).
interactKey	KeyCode	KeyCode.E	Key to press to interact with the focused interactable.
promptUI	InteractionPromptUI	null	Interaction prompt UI component. Auto-finds one in the scene if not set.
showPrompt	bool	true	Whether to display a prompt for the current interactable.

Properties

Property	Type	Description
CurrentInteractable	DialogueInteractable	The currently focused interactable, or null if none in range.
NearbyInteractables	IReadOnlyList<DialogueInteractable>	All interactables currently in range, sorted by priority then distance.

Methods

// Attempts to interact with the current interactable.
// Returns true if dialogue was started.
public bool TryInteract()

Detection Logic

Every updateInterval seconds, the detector runs:

1. Clears the list of nearby interactables.
2. Uses Physics.OverlapSphere(position, detectionRadius, interactableLayer) to find 3D colliders.
3. Uses Physics2D.OverlapCircleAll(position, detectionRadius, interactableLayer) to find 2D colliders (additive, no duplicates).
4. For each collider, checks for a DialogueInteractable component where CanInteract is true.
5. Sorts results by priority (descending), then by distance (ascending) as a tiebreaker.
6. Selects the top result as the new focused interactable.

When focus changes:

• Calls SetFocused(false) on the previous interactable (fires OnLostFocus).
• Calls SetFocused(true) on the new interactable (fires OnBecameFocused).
• Updates the prompt UI with the new interactable's GetPromptText().

When the detector is disabled (OnDisable), it clears focus on the current interactable and hides the prompt.

Editor Gizmos

Draws the detection radius as a semi-transparent amber sphere with a wire outline when selected.

---

InteractionPromptUI

On-screen prompt that follows a world-space target, displaying messages like "Press E to talk to Merchant." Place this on a Canvas in your scene.

Add component: CraftWorks > DialogueCraft > Interaction > Interaction Prompt UI

Inspector Fields

Field	Type	Default	Description
promptText	TextMeshProUGUI	null	Text component to display the prompt message.
panel	GameObject	null	Optional background panel (activated/deactivated with the prompt).
followTarget	bool	true	Whether to follow a target Transform in world space.
offset	Vector3	(0, 2, 0)	Offset from the target position in world space.
targetCamera	Camera	null	Camera for world-to-screen conversion. Uses Camera.main if not set.
animate	bool	true	Enable fade-in/fade-out animation.
animationDuration	float	0.2	Duration of the fade animation (range: 0.1--1.0).

Methods

// Shows the prompt with the given text, optionally following a target transform.
public void Show(string text, Transform target = null)

// Hides the prompt (animated if animate is true, immediate otherwise).
public void Hide()

Behavior

• A CanvasGroup is automatically added if missing. The prompt starts hidden.
• Each frame (LateUpdate), if followTarget is true and a target is assigned, the prompt converts the target's world position (plus offset) to screen coordinates and positions itself there.
• The prompt is only visible when the target is in front of the camera (screenPos.z > 0).
• Animation uses an ease-out-quad curve for smooth fading via CanvasGroup.alpha.
• When hidden, CanvasGroup.blocksRaycasts and CanvasGroup.interactable are set to false.

Setup

1. Create a Canvas in your scene (Screen Space - Overlay or Screen Space - Camera).
2. Add a child GameObject with the InteractionPromptUI component.
3. Add a TextMeshProUGUI child for the prompt text.
4. Optionally add a background Image on a separate child and assign it to panel.
5. Assign references in the Inspector.

When the component is reset in the editor, it automatically searches children for a TextMeshProUGUI and an Image to assign as promptText and panel.

---

DialogueActor

Marks a scene GameObject as addressable by dialogue nodes. Sequence nodes (Actor, Animate, Camera, Shake, Spawn, etc.) reference actors by their ID string. Add this component to any character, prop, or object you want to control from dialogue.

Add component: CraftWorks > DialogueCraft > Dialogue Actor

Fields

Field	Type	Description
ActorId	string	Unique identifier used in dialogue nodes to reference this object.
Actor	Character	Optional link to a Character ScriptableObject (for portraits and display name).
DisplayNameOverride	string	Overrides the display name from the Character asset.

ID Resolution Priority

GetActorId() returns the first non-empty value from:

1. ActorId field
2. Actor.characterId (from the linked Character asset)
3. gameObject.name (fallback)

Display Name Priority

The DisplayName property returns the first non-empty value from:

1. DisplayNameOverride
2. Actor.displayName (from the linked Character asset)
3. gameObject.name (fallback)

---

DialogueActorResolver

Static utility class that resolves string-based actor references to scene GameObjects at runtime. Used internally by Actor, Animate, Spawn, Event (SendMessage mode), and other sequence nodes.

Resolution Order

Given an actor ID string, the resolver tries each strategy in order and returns the first match:

Priority	Input	Strategy
1	"speaker" (case-insensitive)	Finds the DialogueActor matching runner.CurrentSpeakerId.
2	"listener" (case-insensitive)	Finds the DialogueActor matching runner.CurrentListenerId.
3	Any string	Searches all DialogueActor components in the scene for a matching GetActorId() (case-insensitive comparison).
4	Any string	Falls back to GameObject.Find(actorId) -- matches any GameObject by name.
5	"tag:TagName"	Uses GameObject.FindWithTag("TagName"). The tag: prefix is case-insensitive.

If no match is found at any level, a warning is logged and null is returned.

Methods

// Resolves an actor ID to a GameObject.
public static GameObject Resolve(string actorId, DialogueRunner runner)

// Resolves to a Transform (convenience wrapper around Resolve).
public static Transform ResolveTransform(string actorId, DialogueRunner runner)

// Resolves to an Animator. Checks the resolved GameObject first,
// then searches its children with GetComponentInChildren.
public static Animator ResolveAnimator(string actorId, DialogueRunner runner)

// Resolves to a NavMeshAgent on the resolved GameObject.
public static NavMeshAgent ResolveNavMeshAgent(string actorId, DialogueRunner runner)

Usage Examples

// Find the scene object for the current speaker
GameObject speaker = DialogueActorResolver.Resolve("speaker", runner);

// Find a specific NPC by actor ID
Transform merchant = DialogueActorResolver.ResolveTransform("merchant_doran", runner);

// Get an animator for an actor (checks children too)
Animator anim = DialogueActorResolver.ResolveAnimator("knight", runner);

// Find an object by tag
GameObject enemy = DialogueActorResolver.Resolve("tag:Enemy", runner);

---

Input System Support

DialogueCraft abstracts input through the IDialogueInput interface, supporting Unity's Legacy Input Manager, the New Input System package, and custom implementations.

IDialogueInput Interface

All input providers implement this interface:

public interface IDialogueInput
{
    // True on the frame the player wants to advance dialogue.
    bool ContinuePressed { get; }

    // True while the player holds the skip key (fast typewriter).
    bool SkipHeld { get; }

    // -1 = up/previous, +1 = down/next, 0 = no navigation.
    // Used for keyboard/gamepad choice navigation.
    int ChoiceNavigate { get; }

    // True on the frame the player confirms their choice selection.
    bool ChoiceConfirm { get; }

    // Called when the input provider is activated/deactivated.
    void Enable();
    void Disable();
}

LegacyDialogueInput

Default implementation using UnityEngine.Input. Works out of the box with no additional packages.

Add component: CraftWorks > DialogueCraft > Integration > Legacy Dialogue Input

Field	Type	Default	Description
continueKey	KeyCode	Space	Primary key to advance dialogue.
continueKeyAlt	KeyCode	Return	Alternative advance key.
continueMouseButton	int	0 (left click)	Mouse button to advance. Set to -1 to disable.
skipKey	KeyCode	LeftControl	Hold to fast-forward typewriter text.
navigateUpKey	KeyCode	UpArrow	Navigate up in choice list.
navigateUpKeyAlt	KeyCode	W	Alternative navigate up.
navigateDownKey	KeyCode	DownArrow	Navigate down in choice list.
navigateDownKeyAlt	KeyCode	S	Alternative navigate down.
confirmKey	KeyCode	Return	Confirm choice selection.
confirmKeyAlt	KeyCode	Space	Alternative confirm.

Navigation input is cached per frame to prevent double-reads within the same frame.

NewInputSystemDialogueInput

Implementation using Unity's Input System package. Only available when the package is installed (compiled under #if DIALOGUECRAFT_NEW_INPUT_SYSTEM). Supports gamepad, keyboard, and rebindable controls.

Add component: CraftWorks > DialogueCraft > Integration > New Input System Dialogue Input

Field	Type	Description
continueAction	InputActionReference	Action for advancing dialogue.
skipAction	InputActionReference	Action for skipping typewriter (held -- uses performed/canceled callbacks).
navigateAction	InputActionReference	Action for choice navigation (reads Vector2). Y > 0.5 maps to up (-1), Y < -0.5 maps to down (+1).
confirmAction	InputActionReference	Action for confirming a choice.

Actions are automatically enabled on OnEnable and unbound on OnDisable. One-shot inputs (ContinuePressed, ChoiceNavigate, ChoiceConfirm) reset in LateUpdate to ensure they are consumed only once per frame.

DialogueInputHandler

Central singleton that auto-detects and manages the active input provider.

Add component: CraftWorks > DialogueCraft > Integration > Dialogue Input Handler

Fields

Field	Type	Default	Description
mode	InputMode	Auto	Which input system to use.
customInputProvider	MonoBehaviour	null	Custom IDialogueInput implementation (when mode is Custom).

InputMode Enum

Mode	Behavior
Auto	Prefers New Input System if installed and configured (has actions assigned); falls back to Legacy.
Legacy	Forces LegacyDialogueInput.
NewInputSystem	Forces NewInputSystemDialogueInput. Falls back to Legacy if the package is not installed.
Custom	Uses the assigned customInputProvider. Falls back to Legacy if null or not IDialogueInput.

API

// Singleton access
DialogueInputHandler.Instance

// The active input provider
IDialogueInput Input { get; }

// Event fired when input mode changes
event Action<IDialogueInput> OnInputChanged;

// Switch modes at runtime
void SetMode(InputMode newMode)

// Enable/disable input handling
void EnableInput()
void DisableInput()

// Re-initialize the input system (called automatically on Awake and SetMode)
void InitializeInput()

Custom Input Provider

To implement custom input (e.g., for mobile touch or a third-party input asset):

public class TouchDialogueInput : MonoBehaviour, IDialogueInput
{
    public bool ContinuePressed => /* tap detected */;
    public bool SkipHeld => false;
    public int ChoiceNavigate => 0; // choices handled by UI buttons
    public bool ChoiceConfirm => /* tap on selected choice */;

    public void Enable() { /* enable touch listeners */ }
    public void Disable() { /* disable touch listeners */ }
}

Assign the component to DialogueInputHandler.customInputProvider and set mode to Custom.

---

DialogueEvents

DialogueCraft communicates runtime state through UnityEvent-based events on DialogueRunner. All events are serializable and configurable in the Inspector or subscribable from code.

Event Summary

Event	Type	Fired When
OnDialogueStart	UnityEvent	Dialogue begins (StartDialogue called).
OnDialogueEnd	UnityEvent	Dialogue ends (Stop called, End node reached, or no more nodes).
OnDialogueLine	DialogueLineEvent	A text node is displayed.
OnChoicesPresented	DialogueChoicesEvent	A choice node is reached.
OnDialogueEvent	DialogueTriggerEvent	An Event node fires, or a sequence node emits an internal event.
OnWaitingForInput	UnityEvent	Runner is waiting for player to continue or select a choice.
OnVoiceStart	VoiceStartEvent	Voice audio begins playing (for lip sync).
OnVoiceEnd	VoiceEndEvent	Voice audio finishes playing.

Event Argument Classes

DialogueLineEventArgs

Passed with OnDialogueLine.

Field	Type	Description
character	CharacterData	Full character data (may be null if character not found).
characterId	string	Character ID from the text node.
characterName	string	Resolved display name.
text	string	The dialogue text (after localization, variable substitution, and typewriter tag stripping).
portrait	Sprite	Character portrait from CharacterData.
audioClip	AudioClip	Voice audio clip assigned to the text node (may be null).

Constructor: DialogueLineEventArgs(string characterId, string characterName, string text, CharacterData character = null)

DialogueChoicesEventArgs

Passed with OnChoicesPresented.

Field	Type	Description
choices	DialogueChoiceOption[]	Array of available choices.

DialogueChoiceOption

Each element in the choices array:

Field	Type	Description
index	int	Index of this choice. Pass to runner.SelectChoice(index).
text	string	Choice display text (localized, with variables substituted).
isEnabled	bool	false if the choice is greyed out due to failed enableConditions.
isSticky	bool	If true, selecting this choice returns to the choice node after the branch ends.
disabledText	string	Reason text for why a disabled choice is locked. Null if the choice is enabled.

Constructor: DialogueChoiceOption(int index, string text, bool enabled = true, bool sticky = false, string disabledText = null)

DialogueTriggerEvent

UnityEvent<string, string> -- fires with (eventName, eventParameter).

Used by Event nodes (custom events) and internally by sequence nodes:

• Audio nodes fire Audio_Play_{channel} and Audio_Stop_{channel}
• Fade nodes fire Fade_Out and Fade_In
• Shake nodes fire Shake
• Spawn nodes fire Spawn and Destroy

VoiceEventArgs

Passed with OnVoiceStart and OnVoiceEnd. Intended for lip sync integration.

Field	Type	Description
character	CharacterData	Speaking character data (may be null).
characterId	string	Character ID of the speaker.
audioClip	AudioClip	The Unity AudioClip being played. Null when using FMOD.
duration	float	Clip duration in seconds. 0 when using FMOD (duration determined by polling).
fmodEventPath	string	FMOD event path for voice playback. Null when using Unity audio.

Two constructors are available:

• VoiceEventArgs(string characterId, CharacterData character, AudioClip clip) -- Unity audio
• VoiceEventArgs(string characterId, CharacterData character, string fmodPath) -- FMOD audio

Subscribing from Code

public class MyDialogueUI : MonoBehaviour
{
    public DialogueRunner runner;

    void OnEnable()
    {
        runner.OnDialogueStart.AddListener(OnStart);
        runner.OnDialogueEnd.AddListener(OnEnd);
        runner.OnDialogueLine.AddListener(OnLine);
        runner.OnChoicesPresented.AddListener(OnChoices);
        runner.OnDialogueEvent.AddListener(OnEvent);
        runner.OnWaitingForInput.AddListener(OnWaiting);
        runner.OnVoiceStart.AddListener(OnVoiceStart);
    }

    void OnDisable()
    {
        runner.OnDialogueStart.RemoveListener(OnStart);
        runner.OnDialogueEnd.RemoveListener(OnEnd);
        runner.OnDialogueLine.RemoveListener(OnLine);
        runner.OnChoicesPresented.RemoveListener(OnChoices);
        runner.OnDialogueEvent.RemoveListener(OnEvent);
        runner.OnWaitingForInput.RemoveListener(OnWaiting);
        runner.OnVoiceStart.RemoveListener(OnVoiceStart);
    }

    void OnStart()
    {
        dialoguePanel.SetActive(true);
        playerController.enabled = false;
    }

    void OnEnd()
    {
        dialoguePanel.SetActive(false);
        playerController.enabled = true;
    }

    void OnLine(DialogueLineEventArgs args)
    {
        nameLabel.text = args.characterName;
        dialogueText.text = args.text;
        portraitImage.sprite = args.portrait;
    }

    void OnChoices(DialogueChoicesEventArgs args)
    {
        foreach (var choice in args.choices)
        {
            var button = Instantiate(choiceButtonPrefab, choiceContainer);
            button.Setup(choice.text, choice.isEnabled, choice.disabledText);

            int index = choice.index;
            button.onClick.AddListener(() => runner.SelectChoice(index));
        }
    }

    void OnEvent(string eventName, string payload)
    {
        if (eventName == "give_item")
            inventory.AddItem(payload);
    }

    void OnWaiting()
    {
        continueIndicator.SetActive(true);
    }

    void OnVoiceStart(VoiceEventArgs args)
    {
        lipSyncController.StartSpeaking(args.characterId, args.duration);
    }
}

---

Starting Dialogues from Code

DialogueRunner Overview

DialogueRunner is the runtime engine that plays dialogue assets. It processes nodes sequentially, fires events, manages the typewriter effect, handles sub-dialogues, and tracks state.

Add component: CraftWorks > DialogueCraft > Dialogue Runner

Inspector Fields

Field	Type	Default	Description
dialogue	DialogueAsset	null	Default dialogue to play.
characterDatabase	CharacterDatabase	null	For resolving character references. Falls back to DialogueCraftSettings.Characters.
autoStart	bool	false	Start the assigned dialogue automatically on scene load.
useTypewriter	bool	true	Enable typewriter text effect.
typingSpeed	float	0.05	Seconds per character for the typewriter effect (range: 0.01--0.2).
useLocalization	bool	true	Use localized text from LocalizationManager.

DialogueState Enum

State	Description
Idle	No dialogue running.
Running	Processing nodes (branch, variable, event, sequence nodes, etc.).
Typing	Typewriter effect in progress.
Waiting	Waiting for a timed event (Wait node, Timeline, audio playback, animation, shake, etc.).
WaitingForContinue	Text fully displayed, waiting for player to advance.
WaitingForChoice	Choices displayed, waiting for player selection.
WaitingForVoice	Waiting for voice audio to finish playing.

State Properties

DialogueState State { get; }              // Current state
bool IsRunning { get; }                    // True when State != Idle
bool IsWaitingForInput { get; }            // True when WaitingForContinue or WaitingForChoice
bool IsPaused { get; }                     // True when paused
string CurrentSpeakerId { get; }           // Character ID of the current speaker
string CurrentListenerId { get; }          // Character ID of the current listener
VariableStore Variables { get; }           // Per-dialogue variable store (legacy)
static DialogueVariables SharedVariables   // Static shared variable system (preferred)

StartDialogue

Three overloads are available:

// Start the dialogue assigned in the Inspector.
runner.StartDialogue();

// Start a specific dialogue asset.
runner.StartDialogue(myDialogueAsset);

// Start at a named entry point (for dialogues with multiple Entry nodes).
runner.StartDialogue(myDialogueAsset, "shop_greeting");

Behavior:

• If a dialogue is already running, it is stopped first (fires OnDialogueEnd for the previous dialogue).
• The runner initializes the variable store, seeds SharedVariables.Local with the dialogue's local variable defaults, sets state to Running, and fires OnDialogueStart.
• Processing begins from the specified entry node (or the default entry node if no name is given).
• A warning is logged if the asset is null or has no entry node.

Continue

runner.Continue();

Behavior depends on the current state:

State	Effect
WaitingForContinue	Advances to the next node. If paused at an <input> typewriter tag, resumes the typewriter instead.
Typing	Skips the typewriter effect and shows full text immediately.
Waiting	Sets the skip flag so skippable waits end early.

SelectChoice

runner.SelectChoice(int index);

Only works when State is WaitingForChoice. The index corresponds to DialogueChoiceOption.index from the OnChoicesPresented event args. Invalid indices are silently ignored.

If the selected choice is sticky (isSticky = true), the runner pushes the current context onto an internal stack and returns to the choice node after the selected branch ends.

Pause and Resume

runner.Pause();     // Pauses dialogue, typewriter, wait coroutines, and audio
runner.Resume();    // Resumes from paused state

When paused, the typewriter coroutine halts, wait coroutines stop accumulating elapsed time, and audio is paused via AudioProviderManager.Provider.PauseAll(). On resume, audio is resumed with ResumeAll().

Stop

runner.Stop();

Immediately stops the dialogue:

• Stops all active coroutines (typewriter, wait, voice wait).
• Resets cameras that were activated with resetOnDialogueEnd.
• Clears the sub-dialogue and sticky choice stacks.
• Clears SharedVariables.Local (dialogue-scoped variables).
• Sets state to Idle.
• Fires OnDialogueEnd.

SkipTypewriter

runner.SkipTypewriter();

Immediately completes the typewriter effect and shows the full text. Equivalent to calling Continue() while in the Typing state.

SendSignal

runner.SendSignal("door_opened");

Sends a named signal to resume a dialogue paused at a Signal node. If the signal name matches the pending signal (case-insensitive comparison), the dialogue continues to the next node. Call this from game code when a game event occurs that the dialogue is waiting for.

// Example: Signal node waits for "puzzle_solved"
// In your puzzle manager:
public void OnPuzzleSolved()
{
    dialogueRunner.SendSignal("puzzle_solved");
}

Variables

// Per-dialogue legacy API
int gold = runner.GetVariable<int>("gold", 0);
runner.SetVariable("gold", gold + 100);

// Shared variable system (preferred, static access)
// Global -- persists across dialogues and sessions
DialogueRunner.SharedVariables.Global.SetVariable("quest_complete", true);
int reputation = DialogueRunner.SharedVariables.Global.GetValue("reputation", 0);

// Actor -- per-character variables
DialogueRunner.SharedVariables.Actor("merchant").SetVariable("Friendship", 5);

// Local -- dialogue-scoped, cleared when dialogue ends
DialogueRunner.SharedVariables.Local.SetVariable("temp_choice", "sword");

SharedVariables is initialized once in the first DialogueRunner.Awake(). It seeds global variables from DialogueCraftSettings.Variables and actor variables from the CharacterDatabase field definitions.

Save and Restore

// Take a snapshot mid-dialogue (for save games)
DialogueStateSnapshot snapshot = runner.GetStateSnapshot();
// Returns null if no dialogue is running

// Restore from a snapshot
bool success = runner.RestoreFromSnapshot(snapshot);
// Returns true if restoration succeeded; re-presents the current node

// Export/import variables as JSON (legacy API)
string json = runner.GetVariablesJson();
runner.LoadVariablesJson(json);

// Check if a node has been visited
bool visited = runner.WasNodeVisited("node-guid-here");

// Get dialogue play count
int playCount = runner.GetPlayCount();

See the Save System guide for full persistence details.

Complete Example

using DialogueCraft;
using UnityEngine;

public class NPCInteraction : MonoBehaviour
{
    [SerializeField] private DialogueRunner runner;
    [SerializeField] private DialogueAsset greeting;
    [SerializeField] private DialogueAsset shopDialogue;

    void Start()
    {
        runner.OnDialogueLine.AddListener(OnLine);
        runner.OnChoicesPresented.AddListener(OnChoices);
        runner.OnDialogueEnd.AddListener(OnDialogueFinished);
    }

    public void TalkToNPC()
    {
        if (runner.IsRunning) return;

        // Pick dialogue based on game state
        bool hasMetBefore = DialogueRunner.SharedVariables.Global.GetValue("met_merchant", false);
        runner.StartDialogue(hasMetBefore ? shopDialogue : greeting);
    }

    void OnLine(DialogueLineEventArgs args)
    {
        nameLabel.text = args.characterName;
        dialogueText.text = args.text;
        portraitImage.sprite = args.portrait;
        continueButton.gameObject.SetActive(true);

        // Wire continue button
        continueButton.onClick.RemoveAllListeners();
        continueButton.onClick.AddListener(() =>
        {
            continueButton.gameObject.SetActive(false);
            runner.Continue();
        });
    }

    void OnChoices(DialogueChoicesEventArgs args)
    {
        continueButton.gameObject.SetActive(false);

        foreach (var choice in args.choices)
        {
            var button = Instantiate(choiceButtonPrefab, choiceContainer);
            button.GetComponentInChildren<TMP_Text>().text = choice.text;
            button.interactable = choice.isEnabled;

            int index = choice.index;
            button.onClick.AddListener(() =>
            {
                ClearChoiceButtons();
                runner.SelectChoice(index);
            });

            // Show lock reason for disabled choices
            if (!choice.isEnabled && !string.IsNullOrEmpty(choice.disabledText))
            {
                ShowDisabledReason(button, choice.disabledText);
            }
        }
    }

    void OnDialogueFinished()
    {
        DialogueRunner.SharedVariables.Global.SetVariable("met_merchant", true);
        dialoguePanel.SetActive(false);
    }
}

Choosing an Approach

Approach	Best For
DialogueTrigger	Simple interactions configured entirely in the Inspector. Supports zone triggers, click triggers, auto-start, and condition gating.
DialogueInteractable + InteractionDetector	Multiple interactable NPCs with automatic priority-based focus management.
DialogueRunner.StartDialogue()	Custom interaction systems, cutscenes, scripted sequences, or when you need full programmatic control over when and how dialogue starts.
