AI Features

Generate dialogue, edit existing conversations, and translate text into any language -- all from inside the Dialogue Editor.

Requirements​

DialogueCraft AI features require CraftCore (bundled) and at least one configured API provider.

Setup​

  1. Open Tools > CraftWorks > CraftCore > Settings
  2. Configure one or more API providers:
    • OpenAI -- Requires API key. Default model: gpt-4.1-mini
    • Anthropic -- Requires API key. Default model: claude-haiku-4-5
    • Google -- Requires API key. Default model: gemini-2.0-flash
  3. Select your default provider and model

Availability check​

if (DialogueCraftAI.IsAvailable)
{
    Debug.Log($"Provider: {DialogueCraftAI.CurrentProviderName}");
}

DialogueCraftAI.IsAvailable returns true when at least one API key is configured in CraftCore settings.

AI Writing Assistant​

The AI Writing Assistant generates and iteratively edits dialogue content directly in the node graph. Access it from the Dialogue Editor toolbar.

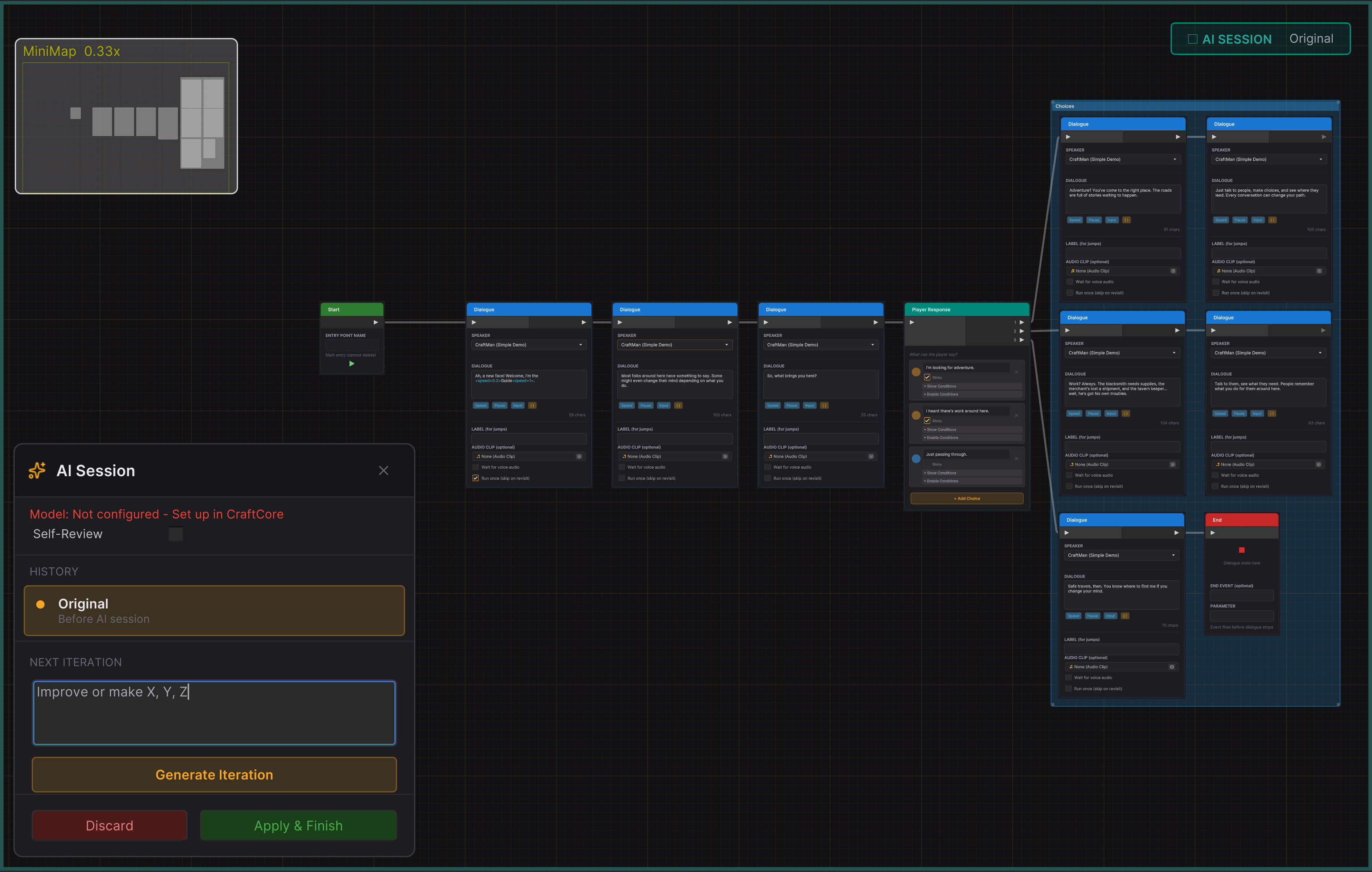

Starting a session​

  1. Open a dialogue in the Dialogue Editor
  2. Click the AI Session button in the toolbar
  3. The AI Session panel appears in the bottom-left of the graph (draggable)

The session panel shows:

  • Model info -- Currently configured provider and model
  • Self-Review toggle -- When enabled, the AI reviews its own output for character voice and parameter quality (extra API call)
  • History -- All iterations with revert buttons
  • Prompt field -- Where you type instructions (Ctrl+Enter to generate)
  • Generate Iteration -- Sends your prompt to the AI
  • Discard / Apply & Finish -- End the session

How sessions work​

When you start a session, AISessionManager.StartSession(DialogueAsset) creates a deep copy of the current graph as a restore point. Each prompt you submit generates a new iteration -- a set of changes applied to the live graph.

Key classes:

ClassPurpose
AISessionManagerManages session lifecycle, iteration generation, graph snapshots
AISessionStores the original graph, iteration list, and current index
AIIterationOne prompt/response pair with changeset and graph snapshot
AIChangesetNode additions, removals, modifications, and connection changes
AISessionPanelThe UI panel (UIToolkit VisualElement)

Session lifecycle​

StartSession(asset)
  -> Deep copy original graph
  -> OnSessionStarted event

GenerateIterationAsync(prompt)
  -> AIPipeline.ExecuteAsync(prompt)
  -> Apply changeset to graph
  -> Create graph snapshot
  -> OnIterationGenerated event

RevertToIteration(index)
  -> Restore graph from snapshot (or original if index == -1)
  -> OnIterationChanged event

EndSession(apply: true)   -> Keeps current graph state
EndSession(apply: false)  -> Restores original graph

Multi-iteration editing​

Each iteration builds on the previous state. The AI sees the current graph (all existing nodes, connections, and labels) and can:

  • Add new nodes after the entry point or any specific anchor
  • Modify existing text or choice nodes (by GUID)
  • Reference labels created in previous iterations

You can revert to any previous iteration at any time. Reverting restores the graph snapshot from that iteration. You can then generate new iterations from that point, effectively branching the edit history.

Content Tree Format​

The AI generates dialogue as a Content Tree -- a JSON structure that maps to DialogueCraft nodes. The ContentTreeParser converts raw AI output into typed ContentBlock objects.

Top-level structure​

{
  "summary": "Brief description of what was generated",
  "anchor": "entry",
  "flow": [ /* array of content blocks */ ]
}
  • anchor -- Where to attach new content. "entry" connects after the entry node. A node GUID inserts after that specific node.
  • flow -- Ordered list of content blocks that form the dialogue.

Block types​

dialogue​

A sequence of speaker lines. Each line becomes a TextNodeData.

{
  "type": "dialogue",
  "lines": [
    {"speaker": "npc_id", "text": "What they say", "label": "optional_label", "runOnce": false}
  ]
}
  • label -- Named reference point for goto blocks (creates loops)
  • runOnce -- Line only plays the first time the node is visited

choices​

Player picks an option. Each option creates a choice port, a response text node, and optional nested flow.

{
  "type": "choices",
  "options": [
    {
      "text": "What the player says",
      "sticky": false,
      "showIf": {"variable": "Gold", "operator": ">=", "value": "100", "scope": "global"},
      "responseSpeaker": "npc_id",
      "response": "NPC's reply",
      "then": [/* nested blocks */]
    }
  ]
}
  • sticky -- Choice stays visible after selection (for menu loops). Must be false for exit options.
  • showIf -- Condition that must be true for the choice to appear
  • then -- Nested blocks executed after the response

random​

NPC says one of several lines randomly, with weighted probability.

{
  "type": "random",
  "speaker": "npc_id",
  "outputs": [
    {"text": "Common line", "weight": 3},
    {"text": "Rare line", "weight": 1}
  ],
  "then": [/* shared continuation */]
}

branch​

Conditional branching based on variables. The last case with no conditions serves as the default (else) path.

{
  "type": "branch",
  "cases": [
    {
      "label": "Rich Player",
      "if": [{"variable": "Gold", "operator": ">=", "value": "100", "scope": "global"}],
      "logic": "and",
      "then": [/* blocks */]
    },
    {"label": "Default", "if": null, "then": [/* fallback */]}
  ]
}

variable​

Set or modify variables at runtime.

{
  "type": "variable",
  "operations": [
    {"variable": "QuestStarted", "operation": "set", "value": "true", "scope": "global"},
    {"variable": "Friendship", "operation": "add", "value": "10", "scope": "actor", "actorId": "merchant"}
  ]
}

Operations: set, add, subtract, multiply, divide, toggle, append. Scopes: global, actor (requires actorId), local.

goto​

Jump to a labelled node (enables menu loops).

{"type": "goto", "target": "shop_menu"}

wait​

Dramatic pause.

{"type": "wait", "duration": 1.5, "canSkip": true}

end​

End the dialogue, optionally firing an event.

{"type": "end", "eventName": "quest_started"}

modify​

Change existing nodes by GUID. Supports text nodes (change text/speaker) and choice nodes (add new options).

{"type": "modify", "nodeId": "GUID", "text": "New dialogue text", "speaker": "npc_id"}

For adding options to an existing choice node:

{"type": "modify", "nodeId": "CHOICE_GUID", "options": [
  {"text": "New option", "responseSpeaker": "npc_id", "response": "Reply", "then": []}
]}

Condition operators​

equals (==), notEquals (!=), greaterThan (>), greaterThanOrEqual (>=), lessThan (<), lessThanOrEqual (<=), isTrue, isFalse, isSet, isNotSet, contains, startsWith, endsWith.

Editing Modes​

The Content Tree format supports three editing patterns, determined by the anchor field and presence of modify blocks:

Generate (new content)​

Set anchor to "entry" and provide a flow array. All blocks are created as new nodes connected after the entry point. This is the default for empty dialogues.

Modify (edit existing)​

Use modify blocks referencing existing node GUIDs. The AI sees all existing nodes in the EXISTING NODES section of its context and can change text, speakers, or add choice options.

Insert / Splice​

Set anchor to a specific node GUID to insert content at that point. The ContentTreeBuilder automatically:

  1. Captures the anchor's existing outgoing connection
  2. Builds the new flow after the anchor
  3. Reconnects the tail of the new flow to the original downstream node
  4. Shifts all downstream existing nodes to the right to avoid overlap

This is handled by the splice logic in ContentTreeBuilder.Build().

AIPipeline​

AIPipeline orchestrates the full generation process. It is the single entry point used by AISessionManager.GenerateIterationAsync().

Pipeline stages​

1. Build Prompts
   - System prompt: block type definitions, rules, examples
   - User context: dialogue name, cast personalities, global variables,
     existing nodes with GUIDs, connections, error feedback (on retry)

2. Generate
   - Send to cloud API via CraftCore
   - Temperature: 0.6 for generation, 0.3 for review

3. Parse
   - ContentTreeParser.Parse(response)
   - Extracts JSON from markdown code blocks or raw braces
   - Converts to typed ContentBlock objects

4. Validate
   - ContentTreeValidator checks:
     * Speakers exist in cast
     * All text fields are non-empty
     * Choices have text, responseSpeaker, and response
     * Random blocks have 2+ outputs
     * Goto targets reference existing labels
     * Branch has a default case
     * Modify targets exist in the graph
     * No infinite loops (at least one exit path)

5. Resolve Variable Names
   - Case-insensitive matching against VariableDatabase and actor fields
   - Fixes AI casing mistakes (e.g., "FriendShip" -> "Friendship")

6. Build
   - ContentTreeBuilder creates AIChangeset (nodes + connections)
   - Handles splicing, label resolution, deferred goto wiring

7. Optional Self-Review
   - AI reviews its own output for character voice and parameter quality
   - If revisions pass validation, they replace the original
   - If "LGTM", original is kept

Retry logic​

If parsing or validation fails, the pipeline retries up to MaxRetries times (default 2). Each retry includes the error feedback in the prompt so the AI can correct its mistakes.

PipelineConfig​

public class PipelineConfig
{
    public int MaxRetries { get; set; } = 2;
    public float Temperature { get; set; } = 0.6f;
    public float ReviewTemperature { get; set; } = 0.3f;
    public int MaxTokens { get; set; } = 4096;
    public bool EnableSelfReview { get; set; } = false;
}

PipelineResult​

public class PipelineResult
{
    public bool Success { get; set; }
    public string Error { get; set; }
    public AIChangeset Changeset { get; set; }
    public string Summary { get; set; }
    public int RetryCount { get; set; }
    public List<string> Warnings { get; }
}

AI Translation​

Translate dialogue text into any language with context-aware prompts that preserve character personality and variable placeholders.

Single entry translation​

From the Localization tab, select an entry and use the AI translate button. Internally this calls:

var result = await DialogueCraftAI.TranslateAsync(new TranslationRequest
{
    Text = "Hello, traveler!",
    SourceLanguage = "en",
    TargetLanguage = "fr",
    SpeakerName = "Merchant",
    SpeakerPersonality = "Friendly, boisterous shopkeeper",
    ContentType = "Dialogue line",
    IncludePersonality = true,
    IncludeContext = true
});

The prompt builder (AIPromptBuilder) creates a system prompt declaring the AI as a "professional game dialogue translator" and includes rules:

  • Maintain character personality and tone
  • Keep {variables}, [tags], and <markup> unchanged
  • Use natural, conversational game dialogue
  • Output ONLY the translation

The output cleaner (AIPromptBuilder.CleanTranslationOutput) strips common AI artifacts: surrounding quotes, language prefixes ("FR:"), parenthetical explanations, and multi-line responses.

Batch translation​

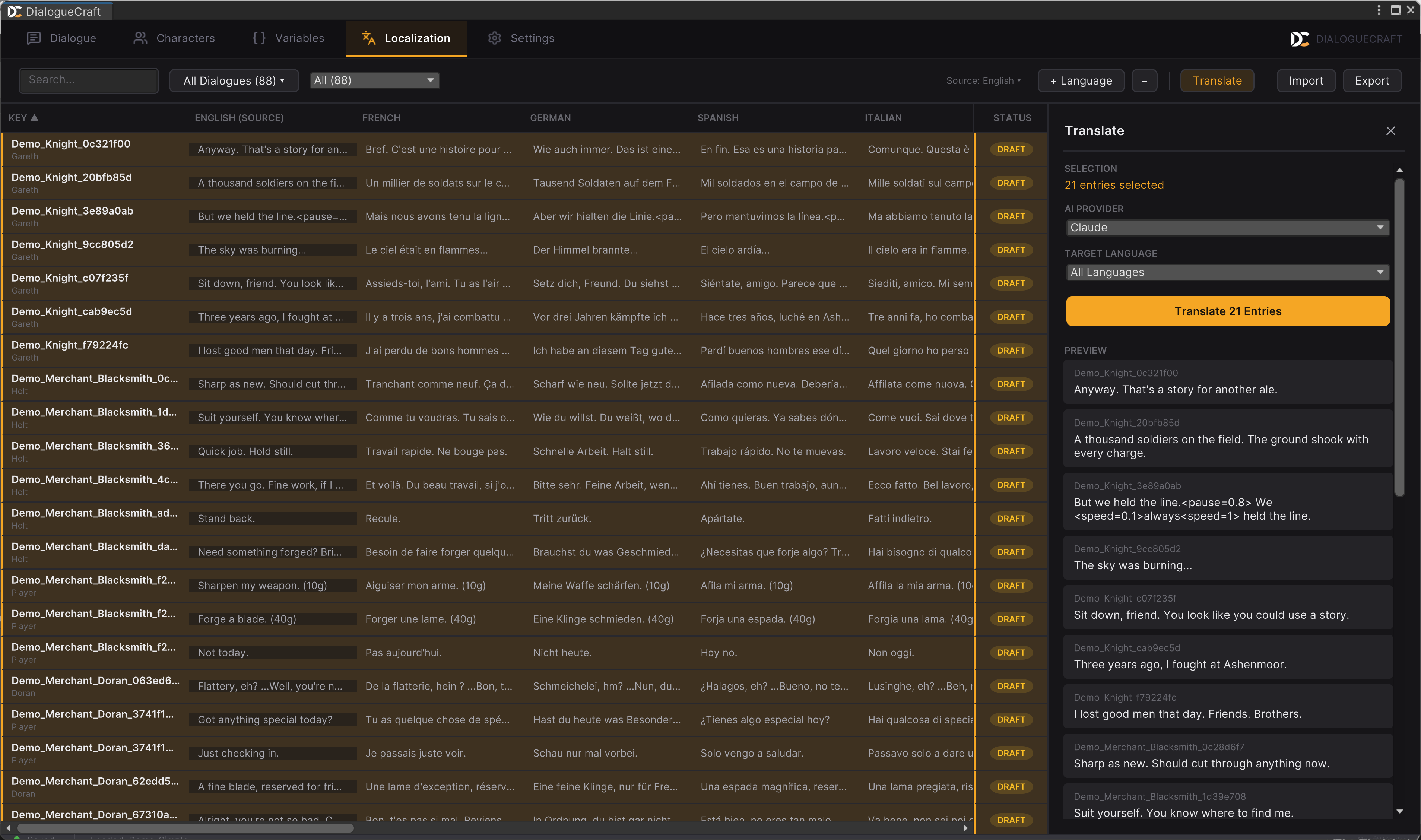

The AI Translation panel (AITranslationPanel) provides a full batch translation workflow:

  1. Scope selection:

    • Missing only -- Translate entries with no translation yet
    • All entries -- Re-translate everything (skips entries marked Final)
    • Re-translate drafts -- Only re-translate AI-generated drafts

  2. Provider selection: Choose from configured API providers. The panel shows cost estimates based on entry count.

  3. Context options:

    • Character personality -- Include speaker personality in prompts
    • Surrounding dialogue -- Include previous/next lines for context

  4. Execution: Entries are processed in batches of 10 using JSON schema for structured output. A progress bar shows current status with cancel support.

  5. Results: Translated text is saved with TranslationStatus.Draft status. The results panel shows success/failure counts.

TranslationRequest fields​

FieldTypePurpose
TextstringText to translate
SourceLanguagestringSource language code (default "en")
TargetLanguagestringTarget language code
EntryKeystringLocalization entry key for reference
ContentTypestring"Dialogue line" or "Player choice"
SpeakerNamestringSpeaker display name
SpeakerPersonalitystringSpeaker personality description
PreviousLinestringPrevious dialogue line for context
MaxLengthintCharacter limit (0 = no limit)
IncludePersonalityboolInclude personality in prompt (default true)
IncludeContextboolInclude surrounding lines (default true)

BatchTranslationResult​

FieldTypePurpose
TotalEntriesintTotal entries processed
SuccessCountintSuccessfully translated
FailedCountintFailed translations
SkippedCountintSkipped (already translated/Final)
TotalTokensUsedintTotal API tokens consumed
TotalDurationMslongTotal time in milliseconds
WasCancelledboolWhether the operation was cancelled
AllSucceededboolTrue if no failures and not cancelled

Supported languages​

The AIPromptBuilder.GetLanguageName() method maps language codes to full names. Supported codes: en, fr, de, es, it, pt, ru, ja, ko, zh, zh-cn, zh-tw, ar, hi, pl, nl, sv, fi, no, da, tr, th, vi, id, ms, cs, hu, ro, uk, el, he. Any unrecognized code is passed through as-is.

Layout Preservation​

When the AI generates new nodes, two layout systems ensure they are positioned cleanly in the graph.

AITreeLayout​

AITreeLayout runs during ContentTreeBuilder.Build() before the changeset is applied. It uses a simplified Reingold-Tilford tree algorithm:

  1. Build tree structure from node changes and connections. Nodes whose parent is an existing graph node become roots with external anchors.
  2. Compute subtree heights (bottom-up). Leaf nodes get NODE_HEIGHT (250px). Linear chains inherit their child's height. Branching nodes sum their children's heights plus gaps.
  3. Assign positions (top-down). Each node is centered within its allocated vertical region. Branching nodes distribute children vertically.

Layout constants: NODE_WIDTH = 350, HORIZONTAL_GAP = 50, VERTICAL_GAP = 30.

AIAutoLayout​

AIAutoLayout runs after nodes are rendered in the graph view. It uses actual rendered node sizes (via resolvedStyle) instead of estimated dimensions:

  1. Collect node info -- Queries rendered width/height from each node view
  2. Group into columns -- Clusters nodes by X position within a tolerance of 50px
  3. Layout columns -- Stacks nodes vertically within each column, aligning the first column with the anchor node's Y position
  4. Apply positions -- Updates both the node views and underlying data

Called via:

AIAutoLayout.LayoutNewNodes(graphView, newNodeGuids, anchorGuid, onComplete);

The method schedules two EditorApplication.delayCall callbacks to ensure the layout pass completes before measuring node sizes.

Splice repositioning​

When content is inserted between existing nodes (splice), ContentTreeBuilder:

  1. Repositions new nodes to start at the splice target's position
  2. Calculates the horizontal depth of the new content
  3. Shifts all downstream existing nodes to the right by depth * HORIZONTAL_SPACING
  4. Returns position shifts in AIChangeset.positionShifts
